Through-hole Isolation Transformer Current Transformers 74002

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 74002

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Supportive

Packaging Details: 500 parts per full reel

Delivery Time: Stock or 3-4 weeks

Payment Terms: TT,Paypal

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

Current Transformers Isolation Transformer

,

74002 Isolation Transformer

,

Through-hole Isolation Transformer

Product Name:
Through-hole Isolation Transformer Current Transformers 74002
Usage:
For Switch Mode Power Supplies
Mount:
Through-hole
Product Type::
SMPS Flyback Transformer
Operating Temperature Range:
–40 °C To +125 °C
Maximum Power:
6W
Package:
Tape/ Reel
Product Name:
Through-hole Isolation Transformer Current Transformers 74002
Usage:
For Switch Mode Power Supplies
Mount:
Through-hole
Product Type::
SMPS Flyback Transformer
Operating Temperature Range:
–40 °C To +125 °C
Maximum Power:
6W
Package:
Tape/ Reel
Through-hole Isolation Transformer Current Transformers 74002

through-hole Isolation Transformer Current Transformers 74002


Characteristics

•Ambient Temperature ≤ 50°C
•Primary Reflected Voltage = 90 to 120V
•Dielectric Strength ≥ 3750Vac
•Creepage Distances ≥ 6mm
•Construction conforms to CEI950, CEI335, CEI61558 for reinforced insulation
•Secondaries may be series connected
•Output power can be delivered with any combinati on of secondaries within the max current limits.







ELECTRICAL SPECIFICATTONS 25°C unless otherwise noted:

Properties   Test conditions Value Unit Tol.
Inductance L N1/ 1 kHz/ 100 mV 670 µH ±10%
Turns Ratio n N1 : N2 : N3  8:1:1
Saturation Current ISAT N1/ |ΔL/L| < 20 % 3 A typ.
DC Resistance 1 RDC 1 N1/ 20 °C 0.81 Ω ±10%
DC Resistance 2 RDC 2 N2/ 20 °C 0.025 Ω ±20%
DC Resistance 3 RDC 3 N3/ 20 °C 0.125 Ω ±10%
Leakage Inductance L S N1/ 100kHz/ 100 mV 12 µH max.
Insulation Test Voltage VT N1,3 => N2 3000 V (AC)
Insulation Test Voltage VT2 N1 => N3 500 V (AC)





Shape and Dimensions:

Through-hole Isolation Transformer Current Transformers 74002 0

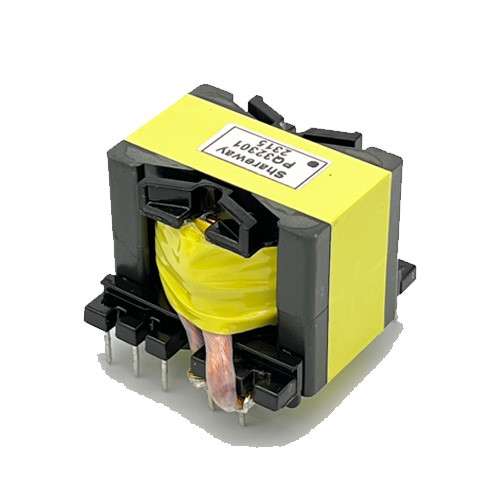

Product picture:

Through-hole Isolation Transformer Current Transformers 74002 1



through-hole Isolation Transformer Current Transformers 74002
