B0322J5050AHF Balun Balanced Transformer
, 0805 Balun Balanced Transformer
, Ultra Low Profile Balun Balanced Transformer
Ultra Low Profile 0805 Balun Balanced Transformer B0322J5050AHF
Ultra Low Profile 0805 Balun Balanced Transformer B0322J5050AHF
Description:
The B0322J5050AHF is a low profile sub-miniature balanced to
unbalanced transformer designed for differential inputs and output locations
on next generation wireless chipsets in an easy to use surface mount
package covering the GSM frequency. The B0322J5050AHF is ideal for high
volume manufacturing and is higher performance than traditional ceramic
and lumped element baluns. The B0322J5050AHF has an unbalanced port
impedance of 50Ω and a 50Ω balanced port impedance. This transformation
enables single ended signals to be applied to differential ports on modern
semiconductors. The output ports have equal amplitude (-3dB) with 180
degree phase differential. The B0322J5050AHF is available on tape and reel
for pick and place high volume manufacturing
Electrical Properties:
Shape and Dimensions:

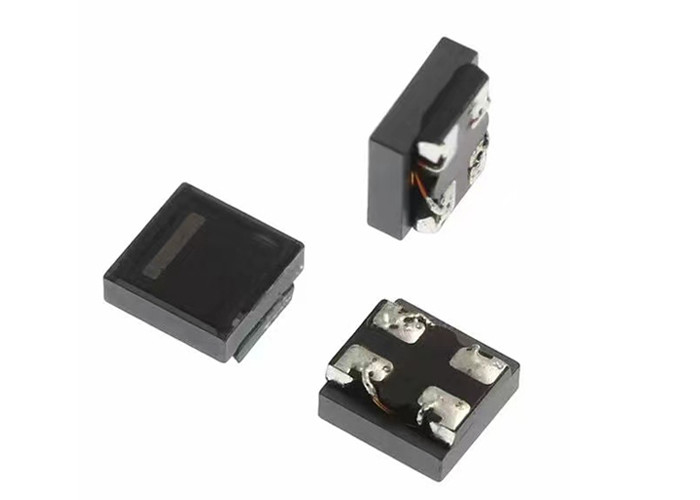

Product picture:
