Oil Immersed Small Signal Transformer Power Over Ethernet Transformer

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

Oil Immersed Small Signal Transformer Power Over Ethernet Transformer

Oil Immersed Small Signal Transformer Power Over Ethernet Transformer
Oil Immersed Small Signal Transformer Power Over Ethernet Transformer

Large Image :  Oil Immersed Small Signal Transformer Power Over Ethernet Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray in Carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 6+6 Pin Power Over Ethernet Small Signal Transformer Type: Oil Immersed
Pin: 6+6 Material: Refined Copper, Plastic And Ferrite Core
Core Shape: EE Phase: Three
High Light:

small step down transformer

,

10 pin transformer

6+6 Pin Power over Ethernet Small Signal Transformer


D Electrical Properties:

Properties Test conditions   Value Unit Tol.
Inductance 100 kHz/ 100 mV L 400V μH ±10%
Turns ratio   n 1:0.25:0.08:0.08:0.08   ±3%
Saturation current |ΔL/L| < 20% Isat 0.3 A typ.
DC Resistance 1 @ 20°C RDC1 1.1 Ω max.
DC Resistance 2 @ 20°C RDC2 0.8 Ω max.
DC Resistance 3 @ 20°C RDC3 30.0 max.
DC Resistance 4 @ 20°C RDC4 30.0 max.
DC Resistance 5 @ 20°C RDC5 30.0 max.
Leakage inductance 100 kHz/ 100 mV LS 4.0 μH max.
Insulation test voltage N1,2 => N3,4,5 UT 1500 V (AC)



E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

  • Storage Temperature: -20°C to 60°C
  • Operating Temperature: -40°C to 125°C
  • Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently



D2 Application Properties:

Properties   Value Unit
Input voltage Ui 36-57 V (DC)
Output voltage 1 (N3) UO1 3.3 V
Output current 1 (N3) IO1 0.4 A
Output voltage 2 (N4) UO2 3.3 V
Output current 2 (N4) IO2 0.4 A
Output voltage 3 (N5) UO3 3.3 V
Output current 3 (N5) IO3 0.4 A
Auxiliary voltage (N2) Uaux 10 V
Switching frequency fswitch 200-500 kHz







Product Picture:

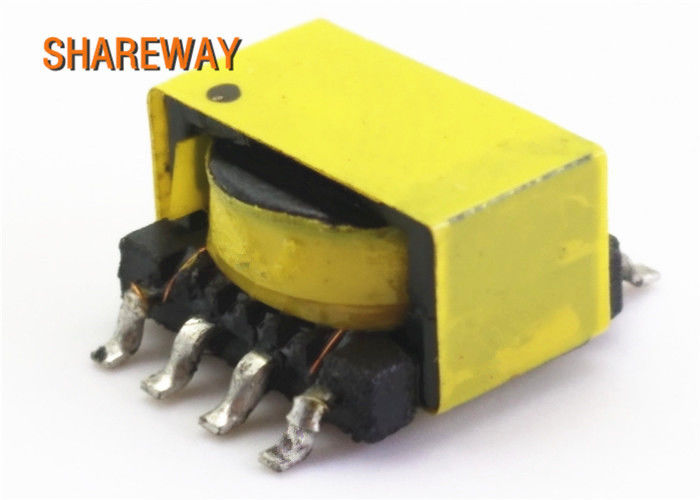

Oil Immersed Small Signal Transformer Power Over Ethernet Transformer 0





6+6 Pin Power over Ethernet Small Signal Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
