Product Name: |
750311564 EI EP EE EC Type High Frequency Small Signal Transformer |
Transformer Model: |
All Types |
Wire Material: |
Pure Copper |
Coil Structure: |
Other |
Color: |
Silver, Yellow, Black, Grey... |
Standard: |
IEC |
Product Name: |
750311564 EI EP EE EC Type High Frequency Small Signal Transformer |
Transformer Model: |
All Types |
Wire Material: |
Pure Copper |
Coil Structure: |
Other |
Color: |
Silver, Yellow, Black, Grey... |
Standard: |
IEC |
EI EP EE EC Type High Frequency Small Signal Transformer
ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 1-2 | @20°C | 0.092 ohms max |
| D.C. RESISTANCE 3-5 | @20°C | 0.036ohms max |
| D.C. RESISTANCE 6-9 | tie(6+7,9+10),@20°C | 0.007 ohms max |
| INDUCTANCE 3-5 | 10KHz,100mVAC,Ls | 9/07uH min. |
| SATURATION CURRENT | 20% rolloff from initial | 8A |
| LEAKAGE INDUCTANCE 3-5 | tie(1+2,6+7+9+10),100KHz,10mVAC,Ls | 120nH typ.250nH max |
| DIELECTRIC 1-9 | tie(2+3,6+7),1875VAC,1 second | 1500VAC,1minute |
| DIELECTRIC 1-5 | 625VAC,1 second | 500VAC,1minute |
| TURNS RATIO | (3-5):(2-1) | 71.714:1±2% |
| TURNS RATIO | (3-5):(6-9),tie(6+7,9+10) | 3:1±2% |
GENERAL SPECIFICATIONS:

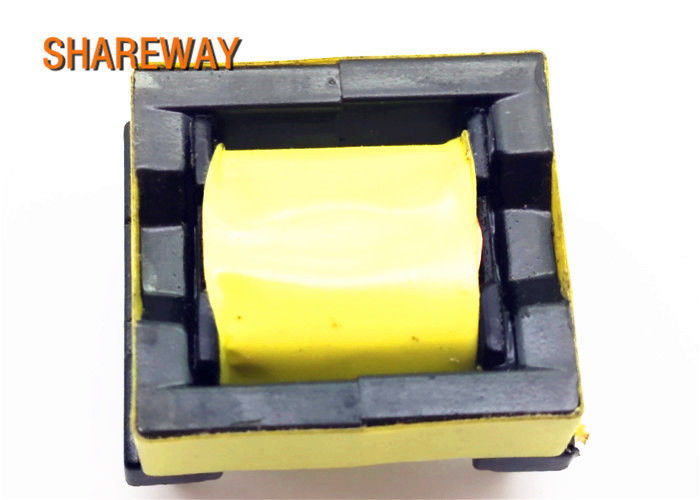

Product Picture:
EI EP EE EC Type High Frequency Small Signal Transformer
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
