Product Name: |

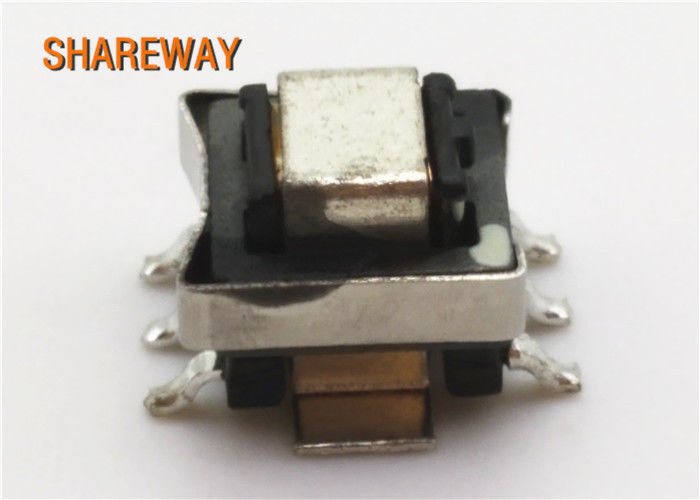

Surface Mount EE5 Small Signal Transformer LPE3325ER100NU With RoHS |
Mount: |
Surface Mount |
Transformer: |
EE5 Type |
Inductance: |
10uH To 68uH |
Size: |
8.2x6.5x5.21mm |
Pin: |
3+3pins |
Product Name: |
Surface Mount EE5 Small Signal Transformer LPE3325ER100NU With RoHS |
Mount: |
Surface Mount |
Transformer: |
EE5 Type |
Inductance: |
10uH To 68uH |
Size: |
8.2x6.5x5.21mm |
Pin: |
3+3pins |
Surface Mount EE5 Small Signal Transformer LPE3325ER100NU with RoHS
FEATURES:
ELECTRICAL SPECIFICATIONS:
Inductance Range: 10 μH to 3900 μH, measured
at 0.10 VRMS at 10 kHz without DC current, using an
HP 4263A or 4284A impedance analyzer
DC Resistance Range: 0.06 to 18.0 , measured at
+ 25 °C ± 5 °C
Rated Current Range: 1.00 A to 0.06 A
Dielectric Withstanding Voltage: 500 VRMS, 60 Hz, 5 s
STANDARD ELECTRICAL SPECIFICATIONS:
| MODEL | IND. TOL. |
SCHEMATIC LETTER |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE3325ER100NU | 10 | ± 30 % | 0.06 | 1.01 | N/A |
| LPE3325ER150NU | 15 | ± 30 % | 0.08 | 0.91 | N/A |
| LPE3325ER220NU | 22 | ± 30 % | 0.09 | 0.83 | N/A |
| LPE3325ER330NU | 33 | ± 30 % | 0.11 | 0.75 | N/A |
| LPE3325ER470NU | 47 | ± 30 % | 0.14 | 0.69 | N/A |
| LPE3325ER680NU | 68 | ± 30 % | 0.16 | 0.63 | N/A |
