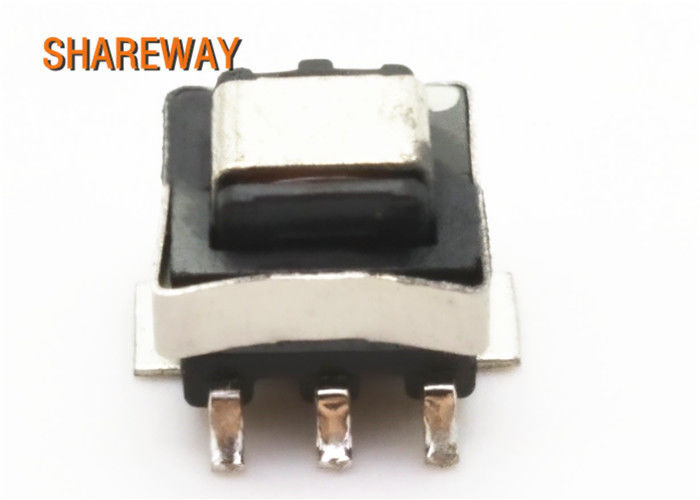

High frequency transformer, Control transformer LPE3325ER101NU / LPE3325ER392NU
Features:
SMT current sense transformer with 20A Input Current,
Small profile
1KHz to 1MHz Frequency ,
Operating temperature : -40℃ to +130℃
Hi-pot: 2000VAC , Primary to Secondary
Soldering methods: Wave, Reflow
Dimension EE4.2, EE5, EE8.3 ,EF12.6 are available
| MODEL | IND. TOL. |
SCHEMATIC LETTER |
DCR MAX. (Ω) |
MAX. RATED DC CURRENT (A) (1) |
SATURATING CURRENT (A) (2) |
| LPE3325ER101NU | 100 | ± 30 % | 0.20 | 0.57 | N/A |
| LPE3325ER151NU | 150 | ± 30 % | 0.76 | 0.29 | N/A |
| LPE3325ER221NU | 220 | ± 30 % | 0.92 | 0.26 | N/A |
| LPE3325ER331NU | 330 | ± 30 % | 1.13 | 0.24 | N/A |
| LPE3325ER471NU | 470 | ± 30 % | 1.35 | 0.22 | N/A |
| LPE3325ER681NU | 680 | ± 30 % | 1.62 | 0.20 | N/A |
| LPE3325ER102NU | 1000 | ± 30 % | 1.97 | 0.18 | N/A |
| LPE3325ER152NU | 1500 | ± 30 % | 2.41 | 0.16 | N/A |
| LPE3325ER222NU | 2200 | ± 30 % | 3.00 | 0.15 | N/A |
| LPE3325ER332NU | 3300 | ± 30 % | 5.96 | 0.10 | N/A |
| LPE3325ER392NU | 3900 | ± 30 % | 7.00 | 0.10 | N/A |
Dimensions:
