Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MID-PPTI Push-Pull Transformers For Industrial Automation |
Application: |
Industrial Automation |
Type: |
Transformers |
Feature: |
MID-PPTI Push-Pull |
PIN NO.: |
3+3 |
Material: |
Wire |
Product Name: |
MID-PPTI Push-Pull Transformers For Industrial Automation |
Application: |
Industrial Automation |
Type: |
Transformers |
Feature: |
MID-PPTI Push-Pull |
PIN NO.: |
3+3 |
Material: |
Wire |

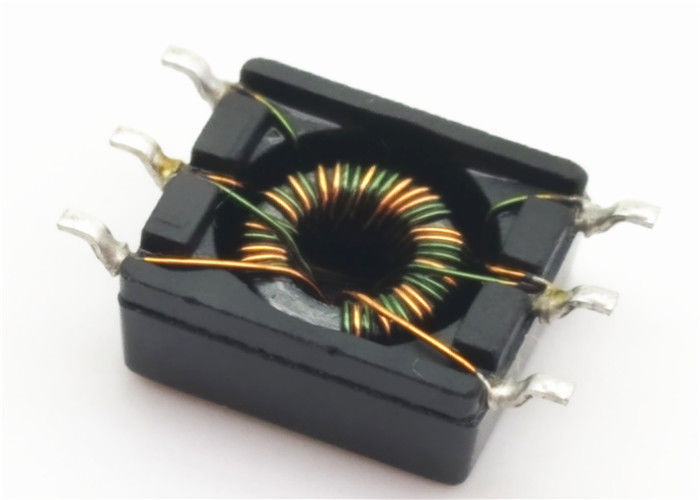

MID-PPTI Push-Pull Transformers for Industrial automation
Description:
Size:6.73x10.46x4.19mm
Pin:3+3Pins
Type:Common mode choke or as a transformer
Material: Pa66. LCP, Copper wire
ELECTRICAL SPECIFICATIONS @25℃ unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 1-3 | @20℃ | 0.400 ohms ±20% |
| D.C. RESISTANCE 6-4 | @20℃ | 1.15 ohms ±20% |
| INDUCTANCE 1-3 | 100KHz,100mVAC,Ls | 350uH min |
| LEAKAGE INDUCTANCE 1-3 | tie(4+5+6),100KHz,100mVAC,Ls | 200nH typ.,400nH max |
| DIELECTRIC 1-6 | 3125VAC, 1 second | 2500VAC,1 minute |
| TURNS RATIO | (6-4):(1-3) | 3.45:1,±2% |
