Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
3125VAC Push-Pull Transformers For PLC Analog And Digital I/O Modules |
Application: |
PLC Analog And Digital I/O Modules |
Type: |
Push-Pull Transformers |
Isolation: |
3125VAC |
Material: |
Case And Wire And Core |
Sample: |
Free |
Product Name: |
3125VAC Push-Pull Transformers For PLC Analog And Digital I/O Modules |
Application: |
PLC Analog And Digital I/O Modules |
Type: |
Push-Pull Transformers |
Isolation: |
3125VAC |
Material: |
Case And Wire And Core |
Sample: |
Free |

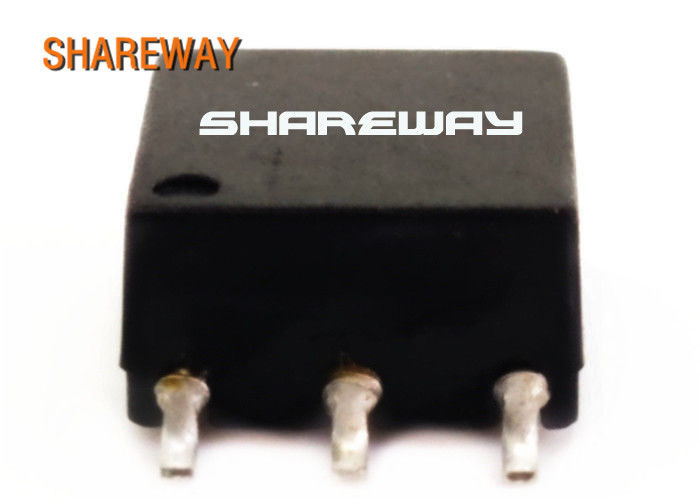

3125VAC Push-Pull Transformers For PLC analog and digital I/O modules
Application:
ELECTRICAL SPECIFICATIONS @25℃ unless otherwise noted:
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C. RESISTANCE 1-3 | @20℃ | 0.100 ohms ±20% |
| D.C. RESISTANCE 6-4 | @20℃ | 0.440 ohms ±20% |
| INDUCTANCE 1-3 | 100KHz,100mVAC,Ls | 86uH min |
| LEAKAGE INDUCTANCE 1-3 | tie(4+5+6),100KHz,100mVAC,Ls | 200nH typ.,400nH max |
| DIELECTRIC 1-6 | 3125VAC, 1 second | 2500VAC,1 minute |
| TURNS RATIO | (6-4):(1-3) | 3.5:1,±2% |
Picture:
