SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System
SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System

Large Image :  SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: 744273501

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: 0.4682US$~0.9543US$
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 200k pcs/month
Detailed Product Description
Product Name: 744273501 SMD/SMT Common Mode Choke For Power Supply System Number Of Lines: 2
Inductance: 30µH @ 100kHz Current Rating: 1.4A
Operating Temperature: -40°C ~ 125°C Mounting Type: Surface Mount

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System




SMD/SMT Common Mode Line Filter

  • Low profile, only 5.3 mm height, suitable for limited space design
  • High Impedance, up to 2200Ω
  • High rated current, up to 5A
  • Rated voltage reach to 80VDC or  42VAC
  • Dimension:  9.5mm(L)*8.3mm(W)*5.3mm(H)





Typical Applications

  • Power supply system
  • Signal and sensor lines
  • Current compensated choke for data and signal lines
  • Suppression of common-mode noise

Product details:



 Part Number Trader Part Number Inductance  Winding Style Z(ohm) Max IR (mA) DCR (ohm) Max Ls (nH) Winding Quantity
CM1005-501 744273501 5 Sectional 500 5000 0.0055 570 2
CM1005-801 744273801 9 Sectional 800 3500 0.011 970 2
CM1005-102 744273102 11 Sectional 1000 2500 0.03 1300 2
CM1005-222 744273222 30 Sectional 2200 1400 0.06 3500 2




Real Product Photo:

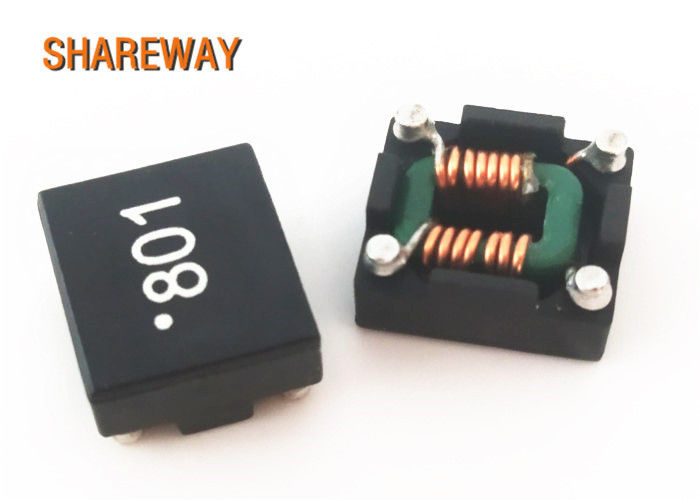

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System 0SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System 1





Mechanical Dimensions:

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System 2

Schematics:

SMD/SMT Common Mode Choke 744273501 Surface Mounting For Power Supply System 3
