Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,ISO9001-2001
Model Number: BX615xNL, BM615xNL, BMU6210NL
Payment & Shipping Terms
Minimum Order Quantity: 200/500 pcs
Price: Supportive
Packaging Details: Tape&Reel/ Tube
Delivery Time: Stock Or 3~5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 500k-pcs/month
Product Name: |

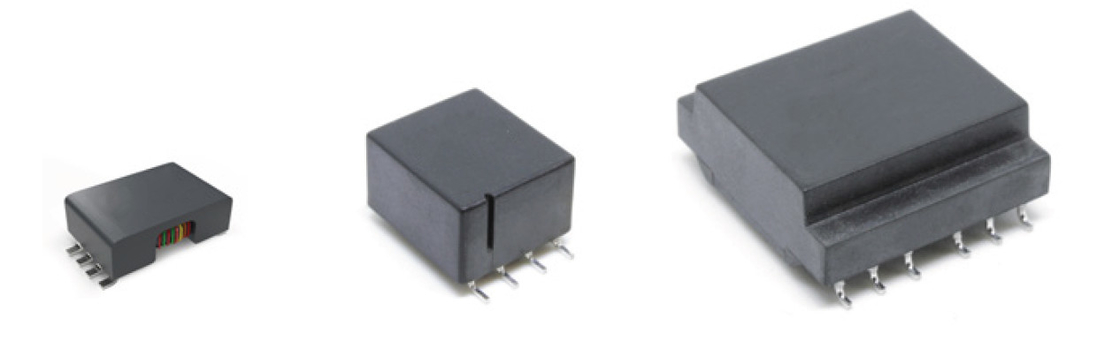

SMT Power Line Communication (PLC) Transformers With Wideband Frequency Response |
Pin No.: |
4+4 & 6+6 Pins |
Pin Pitch: |
2.54mm & 2.50mm |
Size: |
11.3x10.3x7.62mm |
Core No.: |
1 |
Samples: |
Available |
Product Name: |
SMT Power Line Communication (PLC) Transformers With Wideband Frequency Response |
Pin No.: |
4+4 & 6+6 Pins |
Pin Pitch: |
2.54mm & 2.50mm |
Size: |
11.3x10.3x7.62mm |
Core No.: |
1 |
Samples: |
Available |
Electrical Specifications:
| Part Number | Trader Part Number | Turns Ratio ± 2% N1:N2:N3 | OCL (uH Min) | DCR (mOhm Max) N1 | DCR (mOhm Max) N2 | DCR (mOhm Max) N3 | Insertion Loss (dB Max) | Insulation Resistance (Mohm Min at 100V) | Leakage Inductance (uH Max) | Cww (pF Max) | Hi-Pot (Vac) | AEC-Q200 Qualified | Clearance (mm Min) | Package Size (mm) | |
| SPX6150NL | BX6150NL | 1:2CT:1 | 12 | 500 | 500 | 500 | - | - | - | - | 3000 | NO | - | 13.4x15.0x6.5 | |
| SPX6152NL | BX6152NL | 1:1:2 | 7 | 250 | 250 | 500 | - | - | - | - | 3000 | NO | - | 10.3x14.0x7.6 | |
| SPX6153NL | BX6153NL | 1:1 | 7 | 500 | 500 | - | - | - | 25 | 4000 | NO | - | 10.3x14.0x7.6 | ||
| SPX6158NL | BX6158NL | 1:1:1 | 20 | 65 | 65 | 65 | 1.2 | 1 | - | - | 3000 | NO | - | 10.4x15.1x7.3 | |
| SPX6201NL | BMU6201NL | 1:1:1 | 5 | 500 | 500 | 500 | - | - | 0.5 | - | 500 | NO | - | 5.0x8.1x3.9 | |
| SPX6154NL | BM6154NL | 1:1:1 | 8 | 60 | 60 | 60 | 2.25 | 1 | - | - | 3000 | NO | 7.8 | 10.6x12.4x10.0 | |
| SPX6155NL | BM6155NL | 1:1:1 | 28 | 100 | 100 | 100 | 2 | 1 | - | - | 3000 | NO | 7.8 | 10.6x12.4x10.0 |
SPX6150NL
SPX6158NL
SPX6201
SPX6154NL, SPX6155NL
PLC is short for Power Line communication, it is a communication method that uses power lines as the medium. By using power lines as the communication, it's possible to build a system quickly and with a low cost. Because of this reason, PLC is used for communications in smart meters, solar panel monitoring systems, home energy management systems(HEMS), all these can be part of a smart cociety. The communication data can be propagated through AC or DC power lines.
We offer PLC transformer for power line communication solutions consisting of high- performance and flexible PLC devices or evaluation boards.
