2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS, Reach , UL

Model Number: ST2521SNL = PE65812NL

Payment & Shipping Terms

Minimum Order Quantity: 500/1000/2000

Price: Negotationable

Packaging Details: Tube

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 300k pcs/month

Get Best Price
Highlight:

2.5mH Through Hole Transformer

,

UL Audio Through Hole Transformer

,

ST2521SNL PE65812NL

Product Name:
Audio Data Transmission Transformer 2.5mH Through Hole ST2521SNL = PE65812NL
Number Of Pins:
4
Inductance:
2.5mH±20% @ 100kHz
Current Rating:
300mA, 1000mA
Operating Temperature:
-40°C ~ +85°C
Mounting Type:
Through Hole
Product Name:
Audio Data Transmission Transformer 2.5mH Through Hole ST2521SNL = PE65812NL
Number Of Pins:
4
Inductance:
2.5mH±20% @ 100kHz
Current Rating:
300mA, 1000mA
Operating Temperature:
-40°C ~ +85°C
Mounting Type:
Through Hole
2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL

2.5mH Through Hole Audio Data Transmission Transformer ST2521NL = PE-65612NL


Features of ST2521NL = PE-65612NL

These transformers have been designed for use at the interface between the line driver and receiver and the interconnecting medium in Digital Audio Data Transmission Systems according to AES 3-199X or  IEC 958.  In such systems, two channels of periodically sampled and uniformly quantized audio signals are transmitted on a single shielded twisted pair.





 These transformers are recommended for use with the Cirrus Logic CS8401, CS8402, CS8403, and CS8404 '' Digital Audio Interface Transmit Device.''



Product details of ST2521NL = PE-65612NL:

Part Number Trader Part Number Turns Ratios PRI: SEC L Sec Rise Time Et  Isolation
ST2521NL PE-65612NL 1:1 ±5% 0.5uH Max 25 ns max 20 V-us Max 2kv Vrms Min
ST2521SNL PE-65812NL 1:1 ± 5% 0.5uH Max 25 ns max 20 V-us Max 2kv Vrms Min

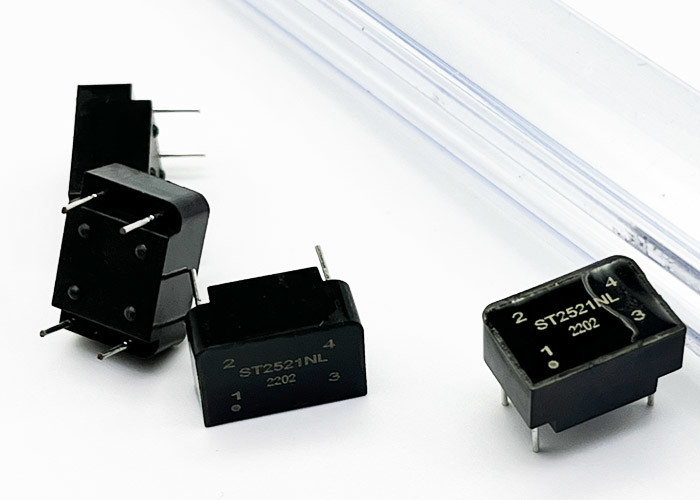

Real Product Photo of ST2521NL = PE-65612NL :

2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL 0





Mechanical Dimensions:

2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL 1

Schematics:

2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL 2

2.5mH Audio Data Transmission Through Hole Transformer ST2521SNL = PE65812NL 3
