Product Name: |
749251050 SMD Assembly CST Current Sense Transformer 3+3pins |
Usage: |
For Overload Sensing |
Mount: |
Surface Mount |
Product Type:: |
Current Sense Transformer |
Operating Temperature Range: |
-40 °C To +130 °C |
Inductance: |
500 µH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
749251050 SMD Assembly CST Current Sense Transformer 3+3pins |
Usage: |
For Overload Sensing |
Mount: |
Surface Mount |
Product Type:: |
Current Sense Transformer |
Operating Temperature Range: |
-40 °C To +130 °C |
Inductance: |
500 µH |
Package: |
Cut Tape /MouseReel/ Reel |
749251050 SMD assembly CST Current Sense Transformer 3+3pins
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | N2/ 10 kHz/ 100 mV | 500 | µH | min |
| Rated Current | IR | N1/ ΔT = 25 K | 20 | A | typ. |
| DC Resistance 1 | RDC1 | N1/ 20 °C | 0.75 | mΩ | max |
| DC Resistance 2 | RDC2 | N1/ 20 °C | 1.4 | Ω | max |
| Turns Ratio | n | N1 : N2 | 1:50 | ||
| Voltage-Time | ∫Udt | N2/ unipolar waveform | 25 | µVs | max |
| Frequency Range | f | Up to 1 | MHz | ||
| Rated Voltage | VR | 80 | V | ||
| Insulation Test Voltage | VT | N1 => N2 | 500 | V (AC) |
Shape and Dimensions:
Product picture:

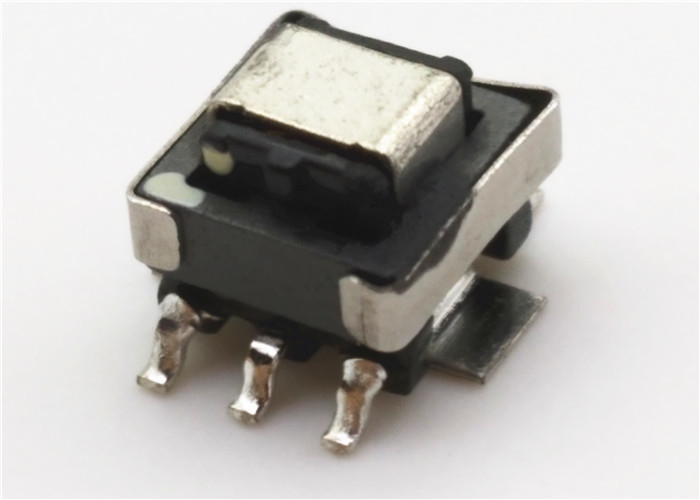

749251050 SMD assembly CST Current Sense Transformer 3+3pins
