Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: WBC1-1LC
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
WBC1-1LC Ferrite SMD/SMT RF Transformers 4.45 Mm X 4.19 Mm X 3.05 Mm |
Usage: |
For Wideband |
Mount: |
Surface Mount |
Product Type:: |
RF Transformers |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
10 UH |
Package: |
Cut Tape /MouseReel/ Reel |
Product Name: |
WBC1-1LC Ferrite SMD/SMT RF Transformers 4.45 Mm X 4.19 Mm X 3.05 Mm |
Usage: |
For Wideband |
Mount: |
Surface Mount |
Product Type:: |
RF Transformers |
Operating Temperature Range: |
-40 °C Up To +85 °C |
Inductance: |
10 UH |
Package: |
Cut Tape /MouseReel/ Reel |
WBC1-1LC Ferrite SMD/SMT RF Transformers 4.45 mm x 4.19 mm x 3.05 mm
Characteristics
Electrical Properties:
|
Part
number
|
Imp
ratio
|
Bandwidth
(MHz)
|
Insertion
loss max
(dB)
|
Pins 4-6
|
Pins 1-3
|
||
|
L min
(µH)
|
DCR max (mOhms)
|
L min
(µH)
|
DCR max
(mOhms)
|
||||
|
WBC1-1LC
|
1:1
|
0.400 – 600
|
0.40
|
10
|
120
|
10
|
120
|
|
WBC1-1TLC
|
1:1
|
0.250– 750
|
0.58
|
9.5
|
75
|
9.5
|
75
|
|
WBC2-1TLC
|
1:2
|
0.200– 500
|
0.50
|
10
|
120
|
20 |
150
|
|
WBC3-1TLC
|
1:3
|
0.300– 900
|
0.60
|
9
|
100
|
27
|
150
|
|
WBC4-1TLC
|
1:4
|
0.250– 750
|
1.0
|
9
|
55
|
36 |
120
|
|
WBC4-14LC
|
1:4
|
1.500– 1200
|
2.0
|
2 |
50
|
8 |
100
|
|
WBC4-1WLC
|
1:4
|
0.500– 1000
|
0.90
|
5 |
80
|
20 |
120
|
|
WBC4-6TLC
|
1:4
|
0.300– 700
|
0.65
|
9
|
80
|
36
|
200
|
|
WBC8-1LC
|
1:8
|
0.150– 600
|
0.60
|
22
|
120 |
176
|
310
|
|
WBC9-1LC
|
1:9
|
0.300– 500
|
0.54
|
9 |
80
|
81 |
230
|
|
WBC16-1TLC
|
1:16
|
0.600– 300
|
0.80
|
5 |
80
|
80
|
230
|
|
WBC4-4LC
|
1:4
|
0.250– 800
|
1.0
|
9 |
60
|
80
|
120
|
Shape and Dimensions:
Product picture:

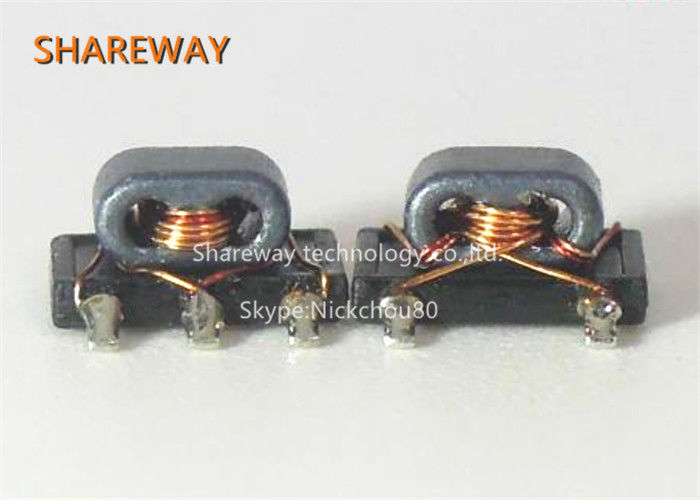

WBC1-1LC Ferrite SMD/SMT RF Transformers 4.45 mm x 4.19 mm x 3.05 mm
