Product Details
Place of Origin: CHINA
Brand Name: Shareway
Certification: RoHs, Reach, UL
Model Number: 750316818
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: USD$0.30 to USD$1.00
Packaging Details: Tray, Tape & Reel
Delivery Time: onw week for sample, 4 weeks for mass order
Payment Terms: T/T
Supply Ability: 1000,000 piece per month
Cross P/n: |
750316818 |
Type: |
Push-pull Transforme |
Input Voltage: |
3-36 V |
Switching Frequency: |
150-2000 KHz |
Output 1: |
30 V / 0.5 A |
Output 2: |
15 V / 0.5 A |
Output 3: |
30 V / 0.5 A |
Output 4: |
24 V / 0.5 A |
Application: |
Medical Instruments |
Sample: |
Free Sample Supported For Testing |
Cross P/n: |
750316818 |
Type: |
Push-pull Transforme |
Input Voltage: |
3-36 V |
Switching Frequency: |
150-2000 KHz |
Output 1: |
30 V / 0.5 A |
Output 2: |
15 V / 0.5 A |
Output 3: |
30 V / 0.5 A |
Output 4: |
24 V / 0.5 A |
Application: |
Medical Instruments |
Sample: |
Free Sample Supported For Testing |
Shareway PPTI push-pull transformer 750316818 factory wholesale
Electrical Specifications @ 25℃ unless otherwise noted:
Mechanical Dimensions:
Push-pull driver for transformers
Wide input voltage range: 3 V to 36 V
60 V input voltage tolerance
Duty-cycle control for line regulation
0.5 A switches with programmable current limit
Wide switching frequency range: 150 kHz to 2 MHz
Allows small-size transformers
Programmable switching frequency
External clock synchronization option
Ultra-low noise and EMI
Symmetric push-pull topology
Spread sprectrum clocking
Pin-configurable slew-rate control
Protection Features
Adjustable under voltage lockout (UVLO)
Programmable over-current protection (OCP)
Over voltage lockout (OVLO)
Thermal shutdown (TSD)
Wide temperature range: –55°C to 125°C
Programmable soft-start to reduce In-rush current
10-Pin HVSSOP (DGQ) package with thermal pad

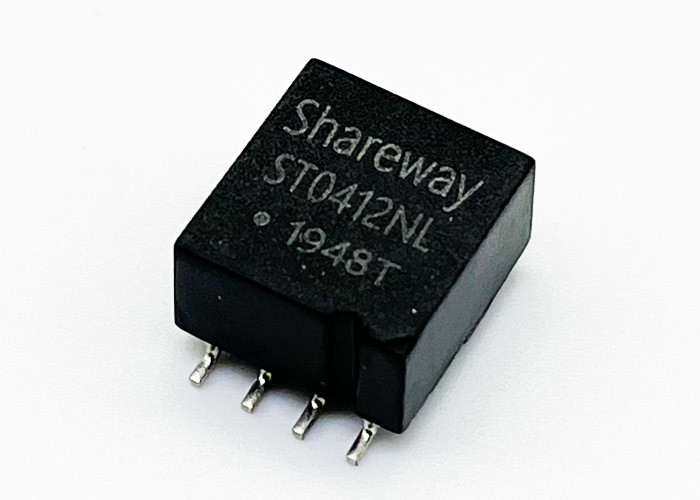

Product Photo:
How to place the order to us:
1. Please send your demand datasheet to us.
2. We will provide drop in alternative and price for refer.
3. If price ok, then we will send you some free sample for testing.
4. After testing, you can place the mass order and process the payment.
5. The lead time for mass order usually is about 4 weeks.
6. When the order is ready, we will ship out and send you the shipping details for tracking.
Please contact sales04@shareway-tech.com freely for any further information.
