High permeability MnZn ferrite Common Mode Chokes CMCF0R9-16V
High permeability MnZn ferrite Common Mode Chokes CMCF0R9-16V
FEATURES
- >Core made of high permeability MnZn ferrite (Tc > 130°C)
- >Optimized size for high power density vs. freq. attenuation
- >Wide operating temperature range -40 to +125°C
- >UL94V and RoHS materials
- >AEC-Q200 qualified >Weight : approx 55grams
OPERATION
>Up to 16A (RMS or DC) per winding
>Total losses < 2W @100°C/2x16Adc
>Estimated temperature rise on PCB < 30°C
ELECTRICAL SPECIFICATIONS
| INDUCTANCE at 25ºC |
L1-4 = L2-3 (10kHz/0.3Vac) |
0.86mH TYP (0.56-1.16mH) |
| TURN-RATIO |
N1-4 : N2-3 (10kHz/1Vac) |
1:1 |
| DC RESISTANCE at 25ºC |
DCR1-4 = DCR2-3 |
2.8mΩ TYP (3.5mΩ MAX) |
| LEAKAGE INDUCTANCE |
Llk1-4 = Llk2-3 (100kHz/1Vac) |
5.5µH TYP (4-7µH) |
| DIELECTRIC STRENGHT |
Between Windings |
1000Vac (50Hz/3mA/1min) |
Shape and Dimensions:

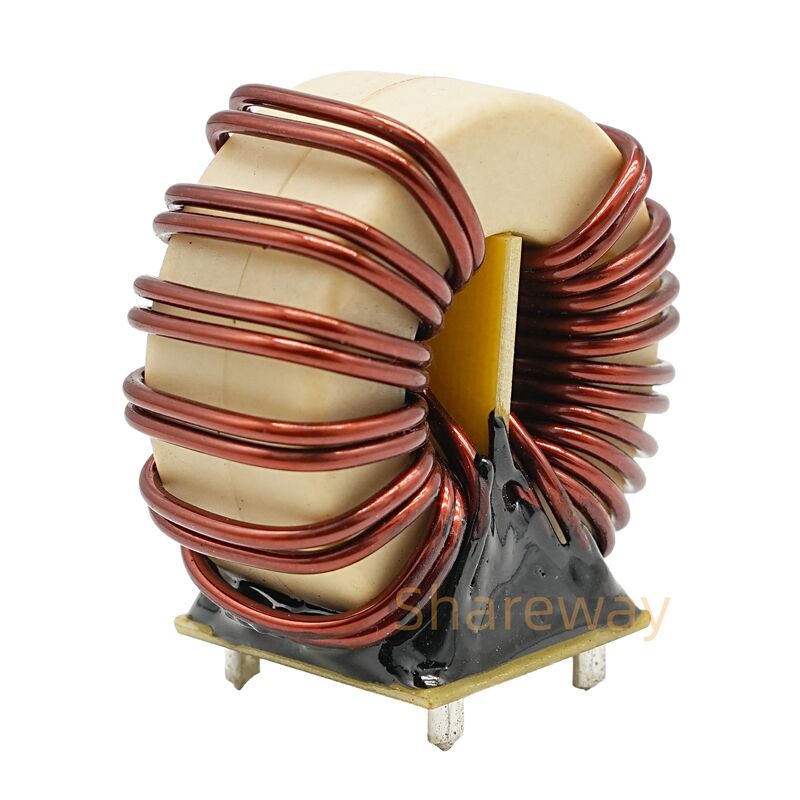

Product picture:
High permeability MnZn ferrite Common Mode Chokes CMCF0R9-16V
