High power Common Mode Choke for DC/DC converters CMCF2R0-16V

High power Common Mode Choke for DC/DC converters CMCF2R0-16V

FEATURES

• >High permeability MnZn ferrite core (Tc > 130°C)
• >Optimized size for high power density vs. freq. attenuation
• >Wide operating temperature range -40 to +125°C
• >UL94V and RoHS materials
• >AEC-Q200 qualified
• >Weight : approx 52grams

OPERATION

>Up to 16A (RMS or DC) per winding

>Total losses < 5W @100°C/2x16Arms

>Cooling of the windings is needed

ELECTRICAL SPECIFICATIONS

Shape and Dimensions:

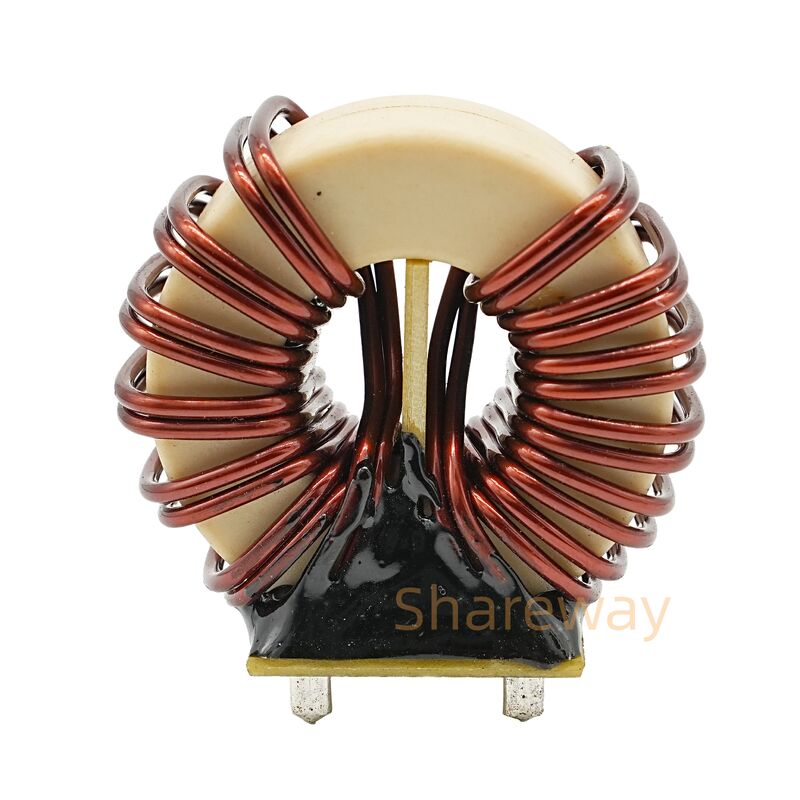

Product picture:

High power Common Mode Choke for DC/DC converters CMCF2R0-16V
