10mH Through-hole Common Mode Choke for Automotive EV CMCN10R-16V

10mH Through-hole Common Mode Choke for Automotive EV CMCN10R-16V

FEATURES

• >High performance CMC using nanocrystalline core
• >Optimized size for high power density vs. good attenuation
• >Wide operating temperature range -40 to +140°C
• >UL94V and RoHS materials
• >AEC-Q200 qualified
• >Weight : approx 30grams

OPERATION

>Up to 16A (RMS or DC) per winding

>Total losses < 3.5W @100°C/2x16Arms

>Cooling of the windings can be required

ELECTRICAL SPECIFICATIONS

Shape and Dimensions:

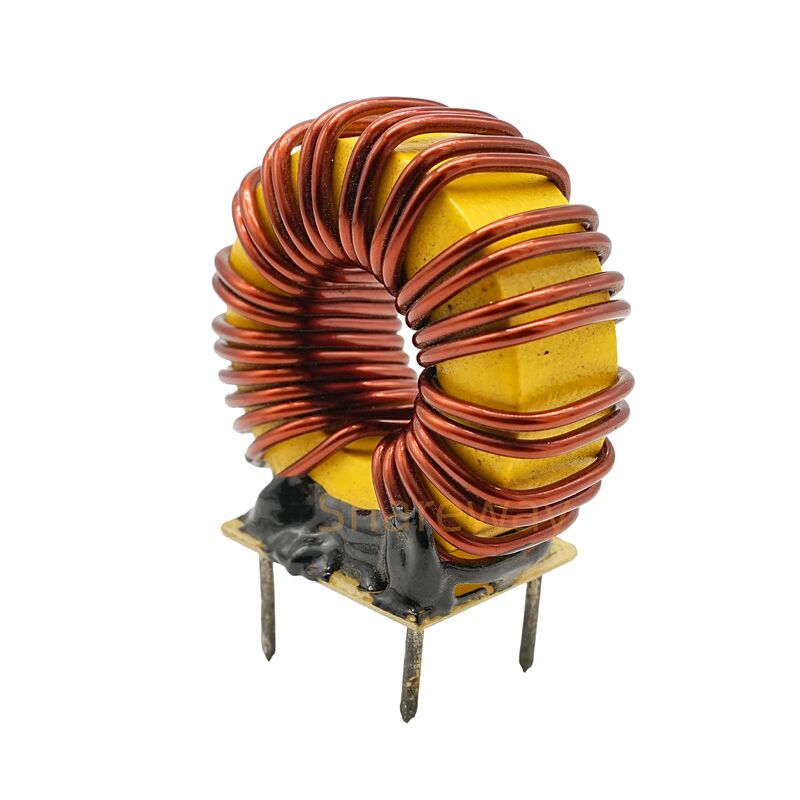

Product picture:

10mH Through-hole Common Mode Choke for Automotive EV CMCN10R-16V
