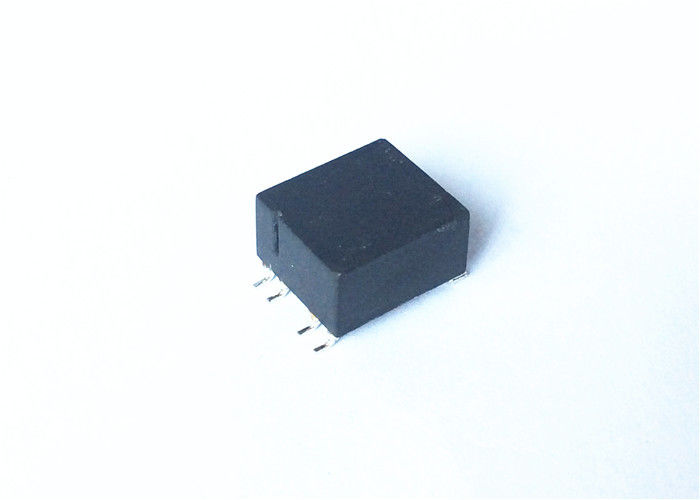

2 Line Surface Mount Choke , 744290103, 80V 500mA DCR 920mOhm For EMC

2 Line Surface Mount Choke , 744290103,  80V 500mA DCR 920mOhm For EMC
2 Line Surface Mount Choke , 744290103,  80V 500mA DCR 920mOhm For EMC

Large Image :  2 Line Surface Mount Choke , 744290103, 80V 500mA DCR 920mOhm For EMC

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 744290103

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal, Western Union, MoneyGram
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 500mA DCR 920 MOhm 2 Line Surface Mount Common Mode Choke 744290103 Part Status: Active
Filter Type: Signal Line Number Of Lines: 2
Inductance @ Frequency: 10mH @ 10kHz Current Rating: 500mA
High Light:

common mode toroidal chokes

,

common mode power line choke

500mA DCR 920 mOhm 2 Line Surface Mount Common Mode Choke 744290103


Description:

  • SMD Common Mode Line Filter for the Power supply system
  • 10uH-330uH common mode inductor line filter for data&signal communication
  • SMD Common Mode Line Filter
  • magnetic core inductor coil /SMD common mode line filter inductor coil
  • SMD Common Mode Filters, SMD Line Filter
  • SMD power common mode choke filter inductor for EMC



Part number 744290103
Inductance 2x10 mH
Rated Current 0.5 A
DC Resistance 2x0.92 Ω
Leakage Inductance 83000 nH
Insulation Test Voltage 500 V (AC)
Rated Voltage 80 V
Ambient Temperature -40 °C up to +85 °C
Operating Temperature -40 °C up to +125 °C
Storage Conditions -20 °C up to +40 °C, < 75% RH
Height (Max) 0.307" (7.80mm)
Dimension 14.50mm x 12.50mm
Mounting Type Surface Mount
Voltage Rating - DC 80V
Number of Lines 2
Filter Type Signal Line





Similar product:

744290103 744290104 744290121 744290130
744290152 744290283 744290321 744290472
744290473 744290560 744290683 7442335600
7442335900
