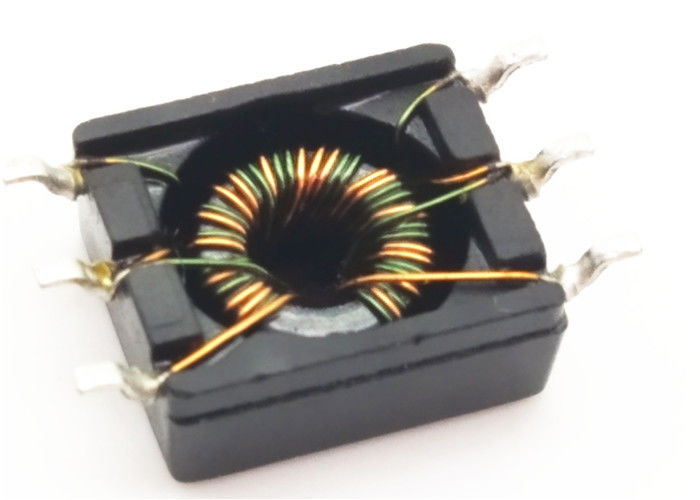

Miniature Toroidal Choke Coil For Common Mode Interference Suppression
Miniature Toroidal Choke Coil For Common Mode Interference Suppression

Miniature Toroidal Choke Coil For Common Mode Interference Suppression

Product Details

Place of Origin: Guangdong,shenzhen

Brand Name: Shareway

Certification: RoHS

Payment & Shipping Terms

Minimum Order Quantity: 500/1000

Price: Supportive

Packaging Details: Reel/Tray

Delivery Time: Stock Or 3 weeks

Payment Terms: TT,Paypal,West Union

Supply Ability: 1kk-pcs/month

Get Best Price

Product Details

Product Description
Highlight:

common mode power line choke

,

surface mount choke

,

RoHS compliant Toroidal Choke Coil

Features:
Bifilar
Product Name:
Miniature Choke For The Suppression Of Common Mode Interference
Category:
Line Filter
Type:
SMD
Inductance:
250 µH
Impedance At 100 MHz:
1400 Ω
Features:
Bifilar
Product Name:
Miniature Choke For The Suppression Of Common Mode Interference
Category:
Line Filter
Type:
SMD
Inductance:
250 µH
Impedance At 100 MHz:
1400 Ω
Miniature Toroidal Choke Coil For Common Mode Interference Suppression

Miniature Choke for the suppression of common mode interference

Description:

The 744203 / 744204 is the choke for signal and data lines. Through its two-way and 4-way power compensation, it is ideal for the suppression of common mode interference.





Category Line filter
Features bifilar
Type SMD
Inductance (L) 250 µH
Impedance at 100 MHz 1400 Ω
Resistance 0.12 Ω
Nominal voltage 80 Vdc, 42 V AC
Nominal current 600 mA
Length 13 mm
Width 11 mm
Height 6 mm
Min. temperature -40 °C
Max. temperature +125 °C
RoHS-compliant Yes
Test voltage 500 V/AC
Windings 4





Dimensions:

Miniature Toroidal Choke Coil For Common Mode Interference Suppression 0
