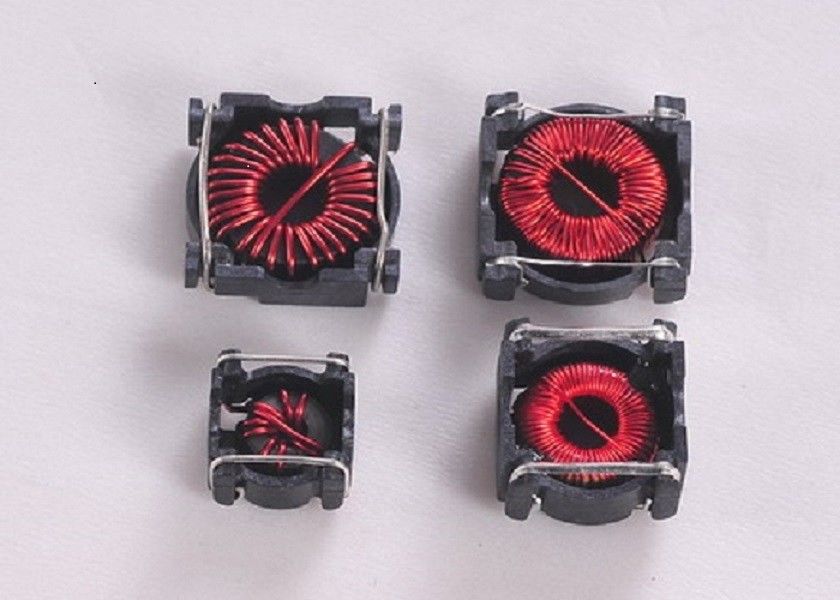

250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH

250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH
250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH

Large Image :  250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,Reach
Model Number: B82724A/ B82724J

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: 0.42US$~0.988US$
Packaging Details: Reel/ Tube
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union, MoneyGram
Supply Ability: 200k-pcs/month
Detailed Product Description
Product Name: Power Line Chokes Current-compensated Ring Core Double Chokes Category: Power Line Communication
Topology: Ferrite Core Wih Epoxy Coating Weight: 27~32 Mg
Geometryl: Toroidal Amblent Temperature: -40℃~+85℃
Reated Current: 0.5A~6A Inductance Range: 1~82mH
High Light:

250VAC Power Line Chokes

,

B82724A/J Power Line Chokes

,

82MH Ferrite Core Choke

B82724A/J series Power line chokes are a pin-to-pin alternative to the CM82724A/J Surface Mount Transformer, Designed for Power inverters and Switch-mode power applications





Product detail:

Shareway Part Number Trader Part Number Topology Geometry Turns Ratio Isolation Vrms Primary Inductance/mH Rtyp mohm
CM82724A/J-82mH B82724A2501N001/ B82724J2501N001   Toroidal Pri:Sec=1:1 500 82 2300
CM82724A/J-68mH B82724A2501N020/ B82724J2501N020   Toroidal Pri:Sec=1:1 500 68 2000
CM82724A/J-12mH

B82724A2302N021/

B82724J2302N021

  Toroidal Pri: Sec=1:1 500 12 125
CM82724A/J-10mH

B82724A2252N020/

B82724J2252N020

  Toroidal Pri: Sec=1:1 500 10 140
CM82724A/J-3.3mH B82724-J2402-N1   Toroidal Pri: Sec=1:1 500 3.3 95
CM82724A/J-4.8mH

B82724A2482N020/

B82724J2482N020

  Toroidal Pri: Sec=1:1 500 4.8 46





Dimensions & Schematic:







250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH 0

250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH 1







Real Product Photo:

250VAC B82724A/J Power Line Chokes Current Compensated Ring 82MH 2





Typical Application:



Power Line Chokes B82724A/J Series typical Applications:

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
  • Power Inverters
