Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,Reach,ISO9001-2001
Model Number: Series SEP
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Negotiation
Packaging Details: Tape& Reel / Tray / Bulk
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 100k pcs/month
Product Name: |

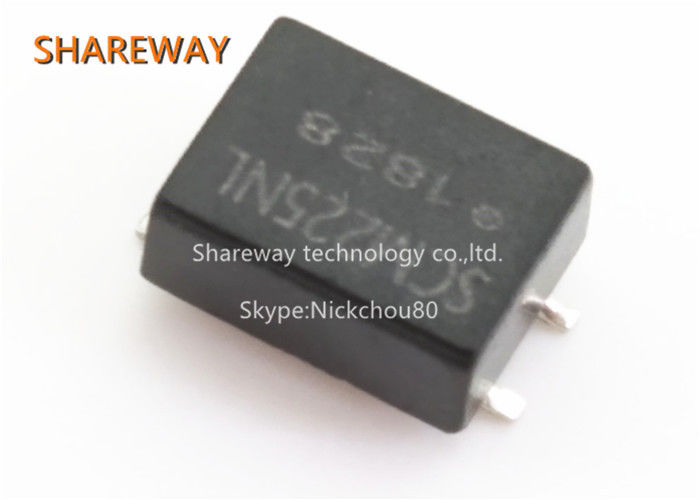

Surface Mount High Inductance Value Common Mode Inductor Series SEP |
Number Of Lines: |
2 |
Inductance: |
384µH , 600uH @ 100kHz |
Current Rating: |
250mA To 650mA |
Operating Temperature: |
-20°C ~ 105°C |
Mounting Type: |
Surface Mount |
Core: |
Ferrite |
Bobbin: |
Surface Mount Bobbin With 6 Leads |
Product Name: |
Surface Mount High Inductance Value Common Mode Inductor Series SEP |
Number Of Lines: |
2 |
Inductance: |
384µH , 600uH @ 100kHz |
Current Rating: |
250mA To 650mA |
Operating Temperature: |
-20°C ~ 105°C |
Mounting Type: |
Surface Mount |
Core: |
Ferrite |
Bobbin: |
Surface Mount Bobbin With 6 Leads |
Features of the Series SEP
Typical Applications
| Part Number | Trader Part Number | L (uH) | Tol % ± | DCR Max (ohm) | Rated Current (mA) |
| SAEP-102K | SEP-102K | 1000 | 10 | 0.25 | 650 |
| SAEP-122K | SEP-122K | 1200 | 10 | 0.28 | 650 |
| SAEP-152K | SEP-152K | 1500 | 10 | 0.30 | 650 |
| SAEP-182K | SEP-182K | 1800 | 10 | 0.40 | 650 |
| SAEP-202K | SEP-202K | 2000 | 10 | 0.42 | 500 |
| SAEP-222K | SEP-222K | 2200 | 10 | 0.47 | 450 |
| SAEP-272K | SEP-272K | 2700 | 10 | 0.55 | 450 |
| SAEP-302K | SEP-302K | 3000 | 10 | 0.60 | 420 |
| SAEP-352K | SEP-352K | 3500 | 10 | 0.68 | 400 |
| SAEP-392K | SEP-392K | 3900 | 10 | 0.75 | 400 |
| SAEP-402K | SEP-402K | 4000 | 10 | 0.85 | 400 |
| SAEP-472K | SEP-472K | 4700 | 10 | 0.90 | 350 |
| SAEP-502K | SEP-502K | 5000 | 10 | 0.95 | 350 |
| SAEP-562K | SEP-562K | 5600 | 10 | 1.10 | 350 |
| SAEP-602K | SEP-602K | 6000 | 10 | 1.25 | 320 |
| SAEP-682K | SEP-682K | 6800 | 10 | 1.30 | 300 |
| SAEP-752K | SEP-752K | 7500 | 10 | 1.55 | 300 |
| SAEP-802K | SEP-802K | 8000 | 10 | 1.75 | 280 |
| SAEP-822K | SEP-822K | 8200 | 10 | 1.90 | 270 |
| SAEP-902K | SEP-902K | 9000 | 10 | 2.25 | 260 |
| SAEP-103K | SEP-103K | 10000 | 10 | 2.50 | 250 |
