250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke

250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke
250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke

Large Image :  250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke

Product Details:

Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,Reach,ISO9001-2001
Model Number: TGM-xxxNS & TGM-xxxNE Series

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Negotiation
Packaging Details: Tape& Reel / Tray / Bulk
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 100k pcs/month
Detailed Product Description
Product Name: DR331 Series 4 Pin SMD Data Line Chokes Number Of Lines: 2
Inductance: From 11uH To 4700 UH Current Rating: 200 MA To 500mA
Operating Temperature: -40°C ~ 85°C Mounting Type: Surface Mount
Core: Ferrite Frenquency Range: 300MHz
High Light:

250Vac Common Mode Choke

,

Toroidal Common Mode Choke

,

4 Pin SMD Data line choke

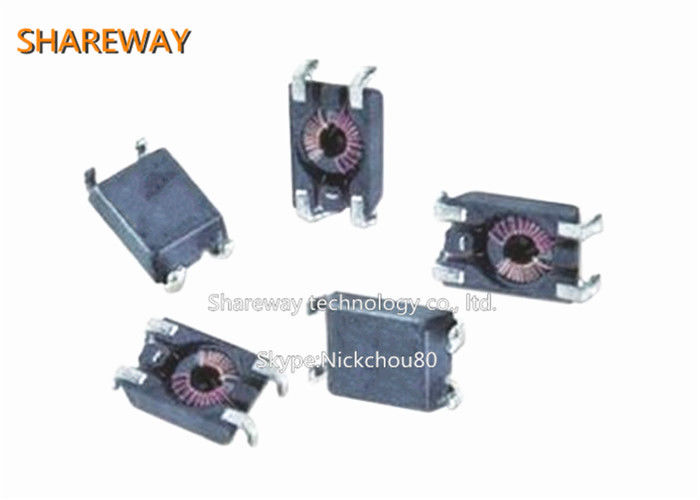

DR331-113BE DR331 Series 4 Pin SMD Data line chokes 250Vac/ 60Hz toroidal common mode choke





Typical Applications of the DR331 Series:

  • For the suppression of EMI in data and signal lines
  • Suitable for CANbus

Features of the DR331 Series:

  • Bifilar or sector windings
  • Wide frequency range over 1000MHz
  • Rated current 0.2 to 0.5A
  • RoHS Compliant product

Speficication of the DR331-113BE DR331 Series:

Part Number Trader Part Number L (1-4) @ 100KHz, 0.1 Vrms (uH) LL(1-4))@ 100KHz, 0.1Vrms (Typ.) (2-3 Shorted) DCR (winding) Max. Rated Current MAx. Winding
DLC-113BE DR331-113BE 11.0 ± 25% 0.05uH 0.12 0.5A Bifilar
DLC-253AE DR331-253AE 25.0± 25% 1.50uH 0.20 0.5A Sector
DLC-513AE DR331-513AE 51.0± 25% 2.0uH 0.30 0.5A Sector
DLC-513BE DR331-513BE 51.0± 25% 0.6uH 0.30 0.5A Bifilar
DLC-104AE DR331-104AE 100.0± 25% 0.85uH 0.10 0.5A Sector
DLC-474BE DR331-474BE 470.0± 25% 0.28uH 0.28 0.5A Bifilar
DLC-105BE DR331-105BE 1000.0± 25% 0.29uH 0.40 0.3A Bifilar
DLC-225BE DR331-225BE 2200.0± 25% 0.30uH 0.70 0.3A Bifilar
DLC-475BE DR331-475BE 4700.0± 25% 0.30uH 0.70 0.20 Bifilar




Mechanical Dimensions of the DR331-113BE:

250Vac 60Hz Toroidal Common Mode Choke 4 Pin SMD Data Line Choke 0

Schematics of the DR331-113BE :
