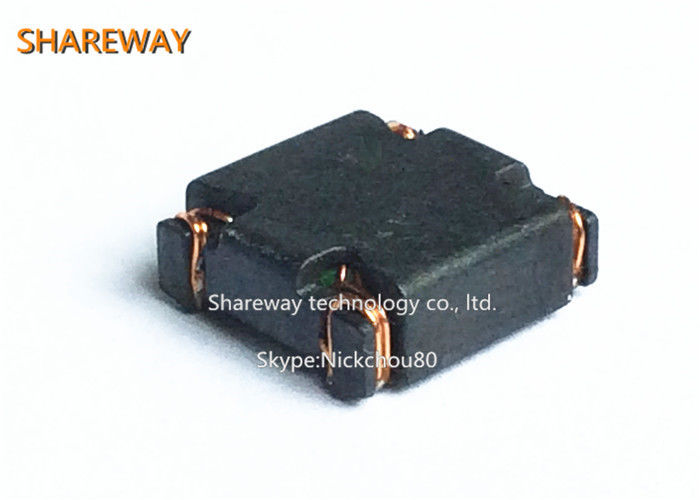

P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D

P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D
P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D

Large Image :  P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D

Product Details:

Place of Origin: China
Brand Name: Shareway
Certification: XF4767S16D
Model Number: P0181NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: 0.48US$~0.95US$ each
Packaging Details: Tape & Reel
Delivery Time: 2~3 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500k per month
Detailed Product Description
Name: Common Mode Choke Wire Diameter: 0.1~0.5mm
Size: 12.7mm*12.7mm Certification: UL/RoHS/SGS
Material: Ferrite Core, Copper Wire Inductance: 190.3uH Connected In Series
Current Rating: 890mA In Series Number Of Coils: 2
High Light:

common mode power line choke

,

surface mount choke



Low Profile SMD Common mode choke, SMT Power Inductors, Toroid - Polecat Series.

190uH SMD Transformer P0181NL, XF4767S16D



Specification :



Height: 5.5mm Max

Footprint : 12.7mm x 12.7mm Max

Current Rating: up to 8.3A

Inductance Range: 2.0uH to 364uH



We also have alternatives to the below parts:

P0174NL

P0175NL

P0176NL

P0177NL

P0178NL

P0179NL

P0180NL

P0181NL

P0182NL

P0183NL



Shareway Part Number

Trader Part Number

Rated Current

Inductance

Inductance

SCM191NL

P0181NL

0.9A in Series

190uH connected in Series

47.6uH connected in Parallel

SCM191NL

XF4767S16D

0.9A in Series

190uH connected in Series

47.6uH connected in Parallel

Dimension:

P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D 0

Schematic:

P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D 1

Real Product Photos:

P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D 2P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D 3P0181NL Low Profile SMD toroidal common mode choke 190uH with high rated current, XF4767S16D 4
